Use of the mini power packs in outdoor demonstrations

The UNI/TR 11426 technical regulation defines the rules on utilization of mini power packs as well in temporary installations.

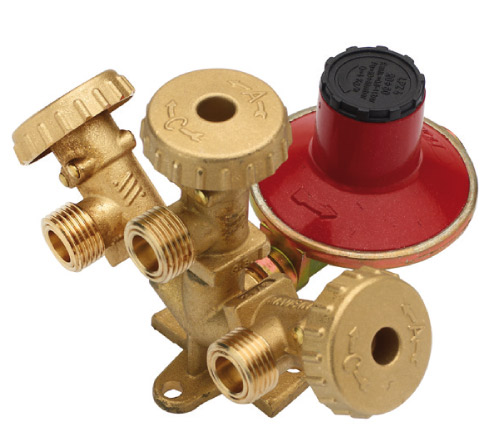

The mini power packs included in the Gnali Bocia catalogue happen to be extremely useful for managing a system where the fuel supply has to be ensured by more than one tank, in our instance up to a maximum 3 tanks. In order to link together a greater number of tanks, one would have to opt for tubular units that might be able to manage a greater number thereof.
One of the ways in which we might utilize the mini power packs is by fuelling users within the scope of outdoor demonstrations.  To that end, the national body has issued a technical regulation, UNI/TR 11426, which regulates the use of LPG systems in temporary outdoor demonstrations where such systems are fuelled by the distribution network, so as to define their planning, installation and maintenance, and their practice as well. The installed power must not however exceed 35 Kw.
In these events, use is usually made, in order to fuel cooking devices and hot water production, of tanks serially linked to the mini power packs, alternatively to power packs via flexible pipes. At source, a pressure reducer ensuring a correct fuelling should be envisaged. This combination is termed  Installation.
The tanks, which can be 125kg at the most, linked with one another by the mini power packs, and the reducer, must be placed in a casing external to the mobile structure, which casing ought to be realized in non-combustible material, capable of being locked so as to protect the installation.



16/04/2015
