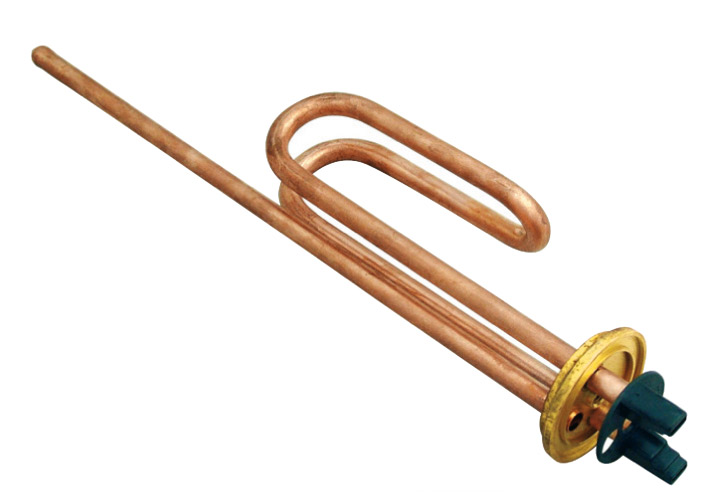

Bent Aniston Flange Heating Elements









WE428

Volt: 220 single-phase, Watt: from 1000 to 3000 (see table) Connection Flange ø 48, Brass CW617N, copper resistance pipe: 8.5 mm, electric connection: Faston, surface charging field. On request with thermostat probe door: L = 275 mm copper, bottom
of scale 70-80°C single and double safety, device in compliance with Standard EN 60730-I ( with other values on request).
On request with magnesium anode socket.

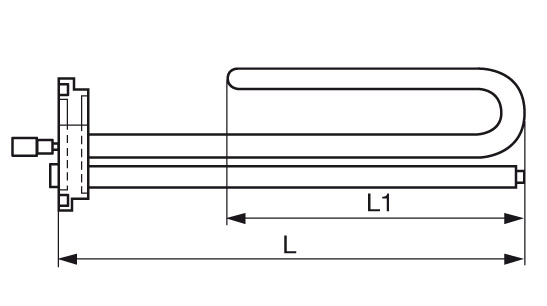

COD. Connessione L L1 Watt
WE428 ø 48 mm 155 105 1200
WE429 ø 48 mm 155 105 1500










Resistência elétrica
